SISTEMA DI TERMOREGOLAZIONE CON COMUNICAZIONE WI-FI

WHAT IS TIEMME GATE?

“TIEMME GATE IS THE SOLUTION FOR REMOTE RADIATOR HEAT REGULATION VIA APP”

REMOTE CONTROL

ENERGY EFFICIENCY

SIMPLE TO INSTALL

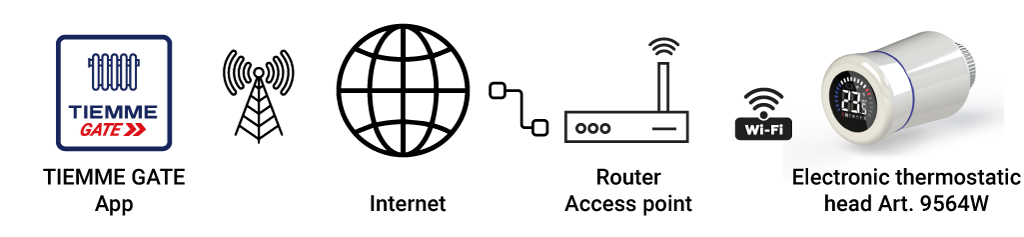

HOW DOES IT WORK?

CONTROL AND REMOTE MANAGEMENT THROUGH THE “TIEMME GATE” APP
The integrated Wi-Fi module allows you to control the thermostatic head remotely with your smartphone.

Simply connect your device to your home router and install the TIEMME GATE app on your smartphone, which is available free of charge for iOS and Android devices.

Slide

10 REASONS TO CHOOSE TIEMME GATE

Programming and control via the free
TIEMME GATE app

No external gateways required
(in addition to home router)

Simple to install and easy to use

Saves energy

Self-learning system for use with multiple manufacturers of radiator valves

Easy to read backlit display

Weekly programming

Child lock

Programma vacanza

Complete communication with voice-controlled Home Automation systems

OPERATION DIAGRAM

CENTRAL SYSTEM
Control of a condominium system without activation of the heat generator (central generator).
In this way, the user can decide for himself the time slots and the temperatures of his own rooms in complete freedom simply by combining the electronic thermostatic heads Art. 9564W to his Wi-Fi network.

IMPIANTO AUTONOMO
Regolazione di un impianto autonomo con l’attivazione del generatore di calore.
In questo modo l’utente, oltre a decidere le fasce orarie e le temperature dei propri ambienti, può attivare/disattivare il generatore di calore in funzione della reale richiesta dell’impianto attraverso l’utilizzo del relè di sistema Art. 9564RS che può comunicare con il generatore attraverso un contatto relè oppure attraverso il bus di comunicazione OpenTherm®.
In questo modo si ottimizzano i tempi di accensione risparmiando energia e costi delle bollette.

Come le teste termostatiche anche il relè di sistema comunica direttamente con l’applicazione TIEMME GATE attraverso la Wi-Fi presente nella propria abitazione. Nell’esempio è mostrata inoltre l’applicazione della sonda ambiente accessoria Art. 9564ST in una stanza (camera) con la funzione di remotizzare la lettura della temperatura della testa termostatica elettronica.

PRODUCTION RANGE

Art. 9564W

Wi-Fi electronic thermostatic head

CodePower supplyUnit/Box
955 0052Battery operated1/4

Art. 9564ST

Wi-Fi Ambient Probe

CodePower supplyUnit/Box
955 0053Battery operated1/4

Art. 9564RS

Wi-Fi system relay

CodePower supplyUnit/Box
955 005485 ÷ 230 Vac 50/60 Hz1/10

SPECIFICATIONS

TECHNICAL SPECIFICATIONS

  • Power supply: 2 batteries 1.5 V AA type (2 season duration)
  • Operation: Off, Manual, Automatic
  • Weekly programming with 3 settable temperatures: T1, T2, T3
  • Daily resolution: 1 hour
  • Measured temperature scale: 0 °C ÷ + 50 °C with ± 0.5 °C accuracy
  • Temperature resolution measured and displayed: 0.1°C
  • Campo regolazione temperatura: + 6 °C ÷ + 28 °C
  • Anti-freeze adjustment range: + 2 °C ÷ + 8 °C (default + 6 °C)
  • Temperature regulation: Proportional on PID basis (default) or ON/OFF (differential can be set between 0.1°C and 1°C – default 0.3°C)
  • Thermostatic head programming lock (Child lock)
  • Temperature can be adjusted directly on the thermostatic head
  • Radiator valve fitting: M30X1,5
  • Adapters available for M28X1.5 valve fitting, Caleffi and Giacomini
  • Direct communication via home Wi-Fi
  • Operating frequency band: 2.4 GHz IEEE 802.11 b/g/n
  • Protection rating: IP30
  • Storage temperature: + 10 °C ÷ + 65 °C

DIMENSIONAL SPECIFICATIONS

Dimensions in mm.

DOWNLOAD AREA

Download the Depliant
Download the technical data sheet and the instruction manual
